If you find that your time and date are incorrect on your Elite PI PRO screen, it could be because the screen does not have a permanent connection to a PC that can send it automatic time updates. If your property is unable to establish this connection or you do not have the proper network connection, we recommend that you just remove the time and date from the screen design. To do this, follow these steps.
STEP 1.
Open your design in the Elite PI designer program. Make sure that you are in edit mode and that the design is unlocked. You will know if you are in edit mode if the design assets have dashed lines around them and the lock icon is not highlighted.
STEP 2.

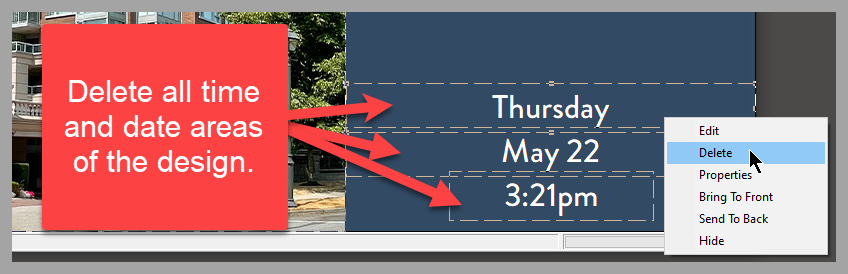

Right click on the time and date area of the screen design and select "Delete". If you have more than one time and date area, you will need to delete them all. Make sure that you do not delete any other asset other than the time and date area.
When you see the confirmation pop up, click "OK".
STEP 3.

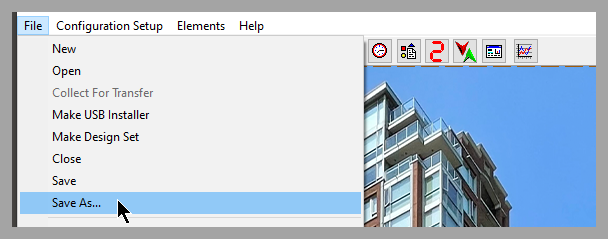

When you are done, save your design.
or you can make a USBInstaller. However, we always recommend saving before creating a USBInstaller.
You can now either update the screen with the USBInstaller via a USB stick directly on the ELite PI PRO screen, or you can use the transfer program to send that design to the screen.
How to save a design as a USBInstaller file – C.E. Electronics
https://youtu.be/ECJC5z6DFUU?si=XO5aWeRu64EQ9ist
