How to force a floor message to stay visible longer

If you are having the issue where a floor message appears for a short time after arriving at a particular floor, but it goes away too fast, then you can use the Elite PI designer program to ignore the door signal to show the message until the car leaves the floor.

1.Open your design in the Elite PI designer program

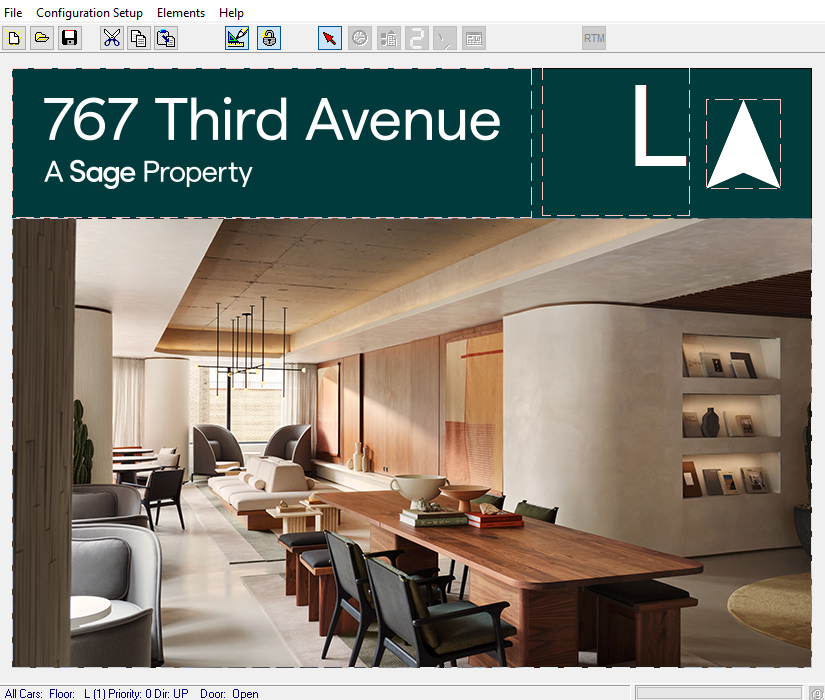

2. Make sure that your design is in the edit state by clicking the "layout state" button.

You will know this when you see the dashed lines around your design elements.

3. Right click inside of your message window, and click on "Properties"

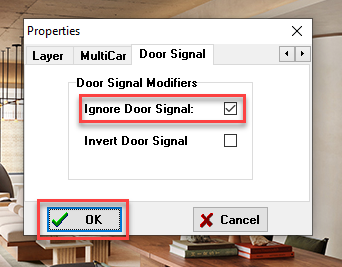

4. Click on the right arrow until you see the "Door Signal" tab

5. Check the box next to "Ignore Door Signal" and then click "OK"

Now the design will display the floor message until the car leaves that floor. Just save your design and send it to the screen with either the transfer program or via USB stick for the change to take effect.

Elite PI Designer ignore door signal
