How to save a design as a USBInstaller file

When you want to save a design as a USBInstaller.zip file so you can update your screens individually with a USB stick, please follow these steps.

Step 1.

In the Elite PI Designer program, with your designed opened, click "File" and then click "Make USB Installer"

Step 2.

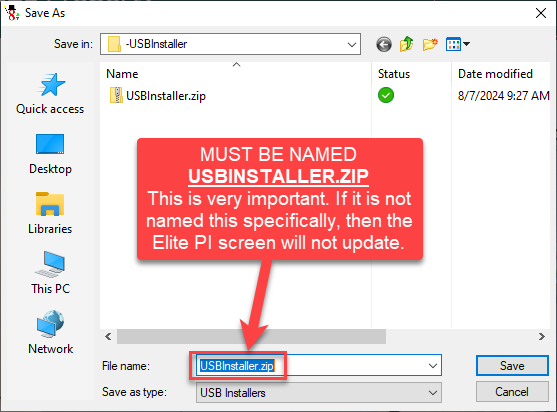

Next you will want to find a location to save the USBInstaller.zip file. It is recommended that you save this directly to a USB stick. Please note that this file MUST BE NAMED USBInstaller.zip. Do not try to open the .zip file, as it will be password protected. Just save this file to a USB stick. Also, make sure that the USB stick only contains this one USBInstaller.zip file and do not save more than one USBInstaller.zip files to a USB stick. Nothing else should be contained in the USB stick except for the one USBInstaller.zip folder.

Step 3.

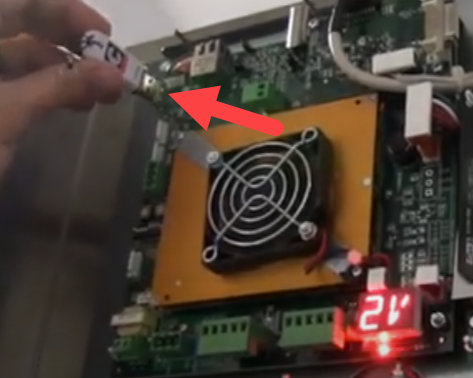

Take the USB stick with the USBInstaller.zip file and plug it into the back of your Elite PI screen. If your screen has a USB extension cable, then you can plug the USB stick into the port found in the service panel inside of the elevator COP

Step 4.

you will see a series of notifications come up on your screen. Do not remove the USB stick until instructed to do so.

After you remove the USB stick, you should see your updated design.

If you have any issues with these instructions, please try following this YouTube tutorial.
