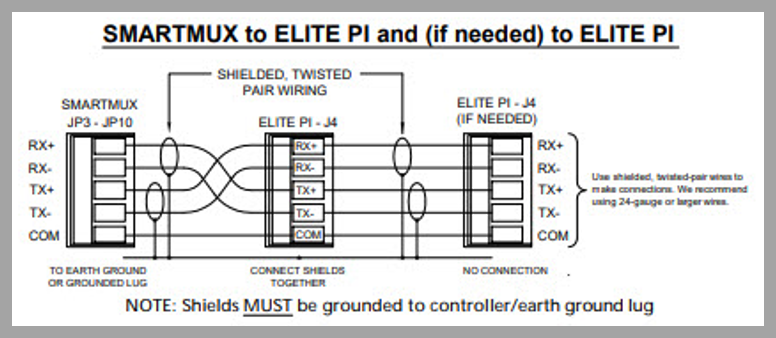

If you are using the discontinued ELBNK serial networking unit, you may need to test to see if the unit is properly connected to the Elite PI screens. First you will need to locate the ELBNK board. For this example, I will demonstrate the procedure using the C.E. Electronics duplex 2-channel ELBNK. The other product is an 8-channel ELBNK, but the process is still the same. This process also assumes that you have wired the ELBNK to the Elite PI. You can reference this wiring diagram when making those connections.
STEP 1.

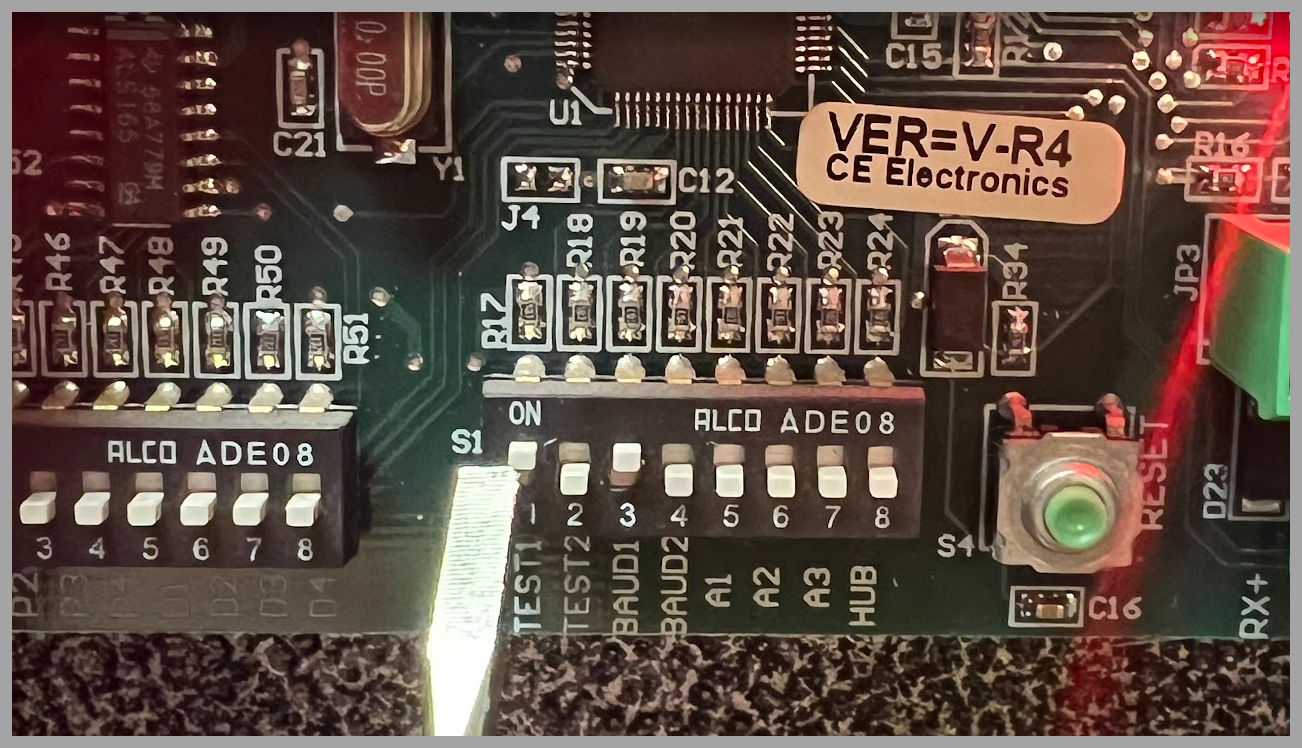

To test the output channel links, set S1, DIP switch 1 to ON.
STEP 2.

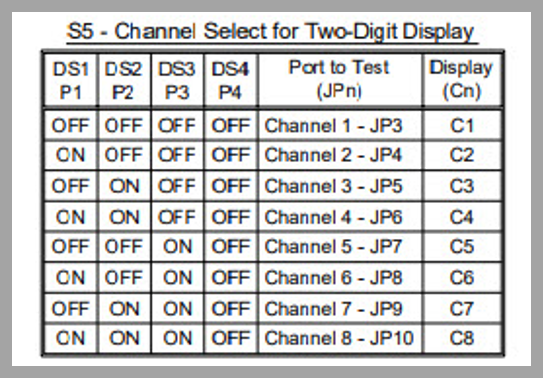

Use the table below to set the S5 DIP switches for the channel to test.
a. If the two-digit display shows Cn (where 'n' is the channel) and then flashes between D1 and OK, then the connection is made properly.
b. If the two-digit display shows Cn (where 'n' is the channel) and then flashes between D1 and --, go to Step 3.
c. If the two-digit display shows Cn (where 'n' is the channel) and then flashes between D1 and a number, contact C. E. Electronics Tech Support at 419-636-6705
STEP 3.
Unplug the connector from the output channel jack (JPn) and swap RX+ with TX+, swap RX- with TX-, and then plug the connector back into JPn.
a. If the two-digit display shows Cn (where 'n' is the channel) and then flashes between D1 and OK, then the connection is made properly.
b. If the two-digit display still shows Cn (where 'n' is the channel) and then flashes between D1 and --, contact C. E. Electronics Tech Support at 419-636-6705
c. If the two-digit display still shows Cn (where 'n' is the channel)and then flashes between D1 and a number, contact C. E. Electronics Tech Support at 419-636-6705
